<div class="tt">藍牙版本與認證測試簡介</div>

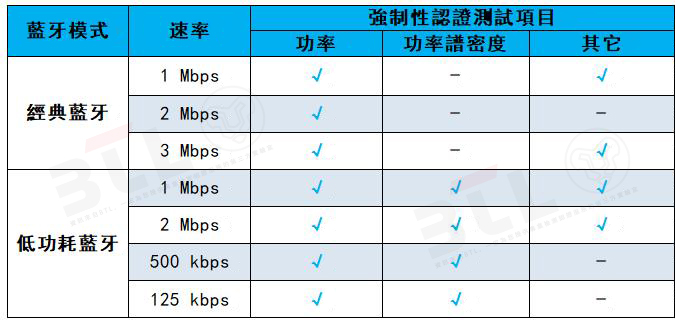

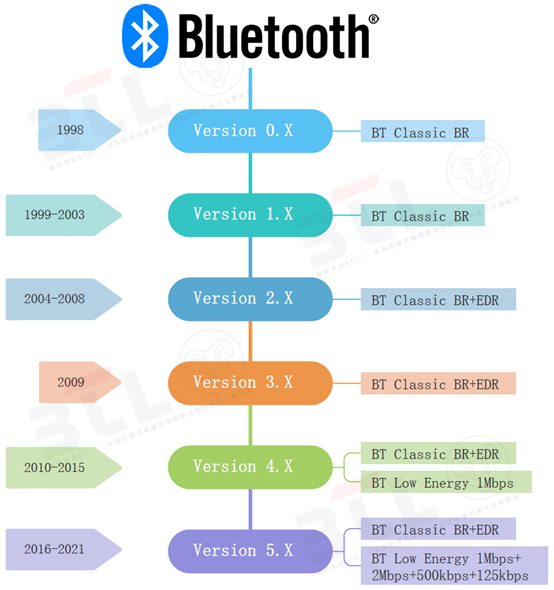

<div class="txt2 txtimg"><p>藍牙發展至今，已有20多年歷史，藍牙版本從最初的0.7版本更新到了目前最新的5.3版本，藍牙模式也從開始的經典藍牙（單模）到後來的經典藍牙+低功耗藍牙（雙模），使用場景也從原始的音訊和資料傳輸到後來的設備網路(Mesh)和位置服務，藍牙產品也越來越多樣化，藍牙耳機、藍牙音響、藍牙滑鼠和藍牙鍵盤都是家喻戶曉的了，智慧家居產品也更多地使用上了藍牙技術，還有藍牙防丟器等新興產品……面對藍牙的技術革新，BTL也做好了充足的準備，為廣大廠商提供RF認證服務。</p><p><br/></p><p><span style="font-size: 18px;"><strong><span style="color: rgb(0, 176, 240);">※ 藍牙版本時間線&nbsp;&nbsp;<strong style="white-space: normal;"><span style="color: rgb(0, 176, 240);">--------------------------------------------&gt;&gt;&gt;</span></strong></span></strong></span></p><p><img src="/upload_files/2022-02/1644371307136324.jpg" title="1644371307136324.jpg" alt="1.jpg"/></p><p>從藍牙最近幾年的更新可以看出，經典藍牙已趨於穩定，而低功耗藍牙技術在解決音訊和資料傳輸的同時，也在向室內定位、方向查找和長距離等更多維度發展，比如BLE 500 kbps (Coded PHY S=2)和125 kbps (Coded PHY S=8)，最多能使藍牙設備使用範圍擴大4倍。 </p><p><br/></p><p><span style="font-size: 18px;"><strong style="white-space: normal;"><span style="color: rgb(0, 176, 240);">※&nbsp;</span></strong><span style="color: rgb(0, 176, 240);"><strong>藍牙RF測試<strong style="white-space: normal;"><span style="color: rgb(0, 176, 240);"><strong style="white-space: normal;"><span style="color: rgb(0, 176, 240);">&nbsp;&nbsp;<strong>--------------------------------------------&gt;&gt;&gt;</strong></span></strong></span></strong></strong></span></span></p><p><span style="color: rgb(0, 176, 240);"></span></p><p><strong>從RF強制性認證角度，針對目前最新最全的藍牙技術，BTL的測試策略如下：</strong></p><p><img src="/upload_files/2022-02/1644371914133247.jpg" title="1644371914133247.jpg" alt="繁表1.jpg"/></p><p><br/></p><p><span style="font-size: 18px;"><strong><span style="color: rgb(0, 176, 240);"><strong style="white-space: normal;"><span style="color: rgb(0, 176, 240);">※&nbsp;</span></strong>藍牙BQB測試<strong style="white-space: normal;"><span style="color: rgb(0, 176, 240);">&nbsp;&nbsp;<strong>--------------------------------------------&gt;&gt;&gt;</strong></span></strong></span></strong></span></p><p><strong>從BQB認證角度，針對目前最新最全的藍牙技術，BTL的測試策略如下：</strong></p><p><img src="/upload_files/2022-02/1644371931294509.jpg" title="1644371931294509.jpg" alt="繁表2.jpg"/></p><p><br/></p><hr/><p><strong><span style="color: rgb(0, 176, 240);">近年來，智慧手機高速發展，基本上人手一部或多部，而藍牙作為無線領域重要的成員之一，是智慧手機必不可少的功能，針對這一功能，各大廠商紛紛推出了自家的藍牙產品，如真無線 (TWS) 藍牙耳機、智能手錶/手環、藍牙防丟器等等。其中屬TWS耳機的市場最好，因目前大部分智慧手機都取消了3.5 mm有線耳機介面，使得無線耳機市場需求不斷增加。而針對TWS耳機，因其左右耳機皆有獨立的藍牙功能，比較多廠商諮詢是否可以申請一個ID和證書，針對這個問題，以下是BTL的專業解答：</span></strong></p><p><br/></p><p>● CE認證，只要是共同販賣的，都是可以申請一張證書的；</p><p><br/></p><p>●&nbsp;FCC/ISED/JRL認證，如果左右耳機PCB Layout / 元器件等一模一樣或是鏡像設計，一般是可以申請一個ID和證書的；</p><p><br/></p><p>●&nbsp;FCC/ISED/JRL認證，如果左右耳機PCB Layout / 元器件等非一模一樣且非鏡像設計，有較大差異的，一般需要左右耳機獨立申請ID和證書；</p><p><br/></p><p>●&nbsp;FCC/ISED認證，如果左右耳機PCB Layout / 元器件等非一模一樣且非鏡像設計，僅細微差異的，需要提交具體差異給到發證機構進行評估界定是否可以申請一個ID和證書；</p><p><br/></p><p>●&nbsp;BQB認證，如果左右耳機的藍牙晶片引用協定部分的QDID是一致的，則可以使用一個DID和證書，如果QDID不一樣，則不可以使用一個DID和證書。</p><p><br/></p><p><strong>如果還想瞭解更多關於藍牙認證方面的內容，隨時歡迎廣大廠商聯繫BTL團隊，BTL會與您分享最專業最全面的資訊。</strong></p></div>
