    <div class="tt">欧洲UMTS移动通讯法规只关注在射频吗 ? 不会有OTA 性能要求吗 ?</div>

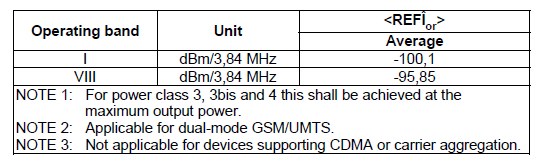

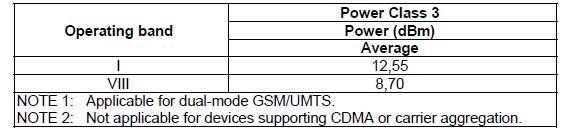

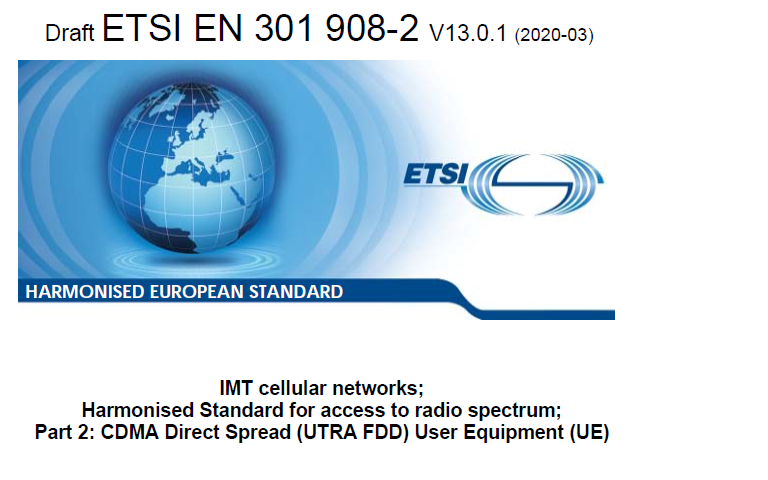

    <div class="txt2 txtimg"><p><img src="/upload_files/2020-03/1584605974164381.png" title="1584605974164381.png" alt="30190802 v13001 draft.png"/></p><p>Draft ETSI EN301908-2 v13.0.1(2020-03)法规主要增加两项测试&nbsp;，总辐射功率(Total Radiated Power, TRP)、总全向灵敏度(Total Isotropic Sensitivity, TIS) 。且要求适用于小于72mm的手持式设备需要进行测试，具体测试程序，混响室方法可参考ETSI TS 137 544 。</p><p>&nbsp;</p><p>TRP(Total Radiated Power)：通过对整个辐射球面的发射功率进行面积分并取平均得到。它反映手机整机的发射功率情况，跟手机在传导情况下的发射功率和天线辐射性能有关。</p><p>&nbsp;</p><p>TIS(Total Isotropic Sensitivity)：反映在整个辐射球面手机接收灵敏度指标的情况。它反映了手机整机的接收灵敏度情况，跟手机的传导灵敏度和天线的辐射性能有关。</p><p>&nbsp;</p><p><strong>其中TIS,TRP限制值分别如下</strong></p><p>1、TIS 量测值不能超过表中规定,请产品需评估高中低三个信道 ,分别为 UTRA FDD band I (-100.1) ,Band VIII (-95.85)</p><p><img width="543" height="167" src="/upload_files/2020-03/1584494074134629.png" title="1584494074134629.png" alt="中1.png"/>&nbsp;</p><p>&nbsp;</p><p>2、TRP 量测值不能超过表中规定,请产品需评估高中低三个信道 ,分别为 UTRA FDD band I (12.55dBm) ,Band VIII (8.7dBm)</p><p><img width="554" height="133" src="/upload_files/2020-03/1584494088557864.png" title="1584494088557864.png" alt="中2.png"/>&nbsp;</p><p><strong><span style="color: rgb(255, 0, 0);">Note:</span></strong></p><p><span style="color: rgb(255, 0, 0);">BHHL(人头左耳+左手) Beside Head Hand Left (Head and Hand Phantom)</span></p><p><span style="color: rgb(255, 0, 0);">BHHR(人头右耳+右手) Beside Head Hand Right (Head and Hand Phantom)</span></p><p>&nbsp;</p><p>此部分为头加手时的情况，主要就是模拟人们在接听电话时所进行中的动作，比起单纯手而言手机靠近头时因周遭环境改变所以天线的辐射效率也会受到影响。</p><p>&nbsp;</p><p>一般测试经验如下，辐射TRP一般较少出问题，而辐射TIS不过时可以朝产品内部电磁噪声的干扰进行整改。当辐射TIS不达标时，首先要考虑传导TIS是否达标，或是射频电路中的器件（如双工器的隔离度较差导致）、或是加强屏蔽盖与共模电感对地，以及各节电路的匹配等因素有关。</p><p>&nbsp;</p><p>总之通常TIS越小越好,正如我们的耳朵听与听声音的关系，我们都希望越小声的声音都能够听见，这样就代表这个终端手机灵敏度也就越好。</p><p><br/></p></div>
