<div class="tt">蓝牙版本与认证测试简介</div>

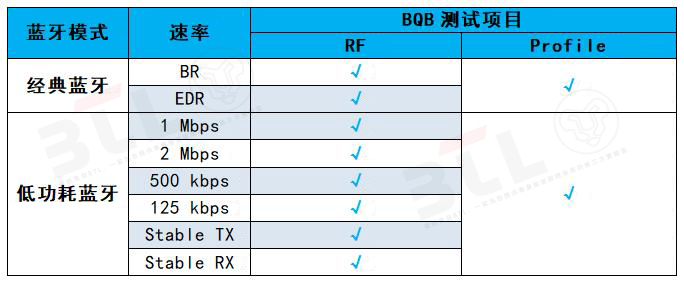

<div class="txt2 txtimg"><p>蓝牙发展至今，已有20多年历史，蓝牙版本从最初的0.7版本更新到了目前最新的5.3版本，蓝牙模式也从开始的经典蓝牙（单模）到后来的经典蓝牙+低功耗蓝牙（双模），使用场景也从原始的音频和数据传输到后来的设备网络(Mesh)和位置服务，蓝牙产品也越来越多样化，蓝牙耳机、蓝牙音响、蓝牙鼠标和蓝牙键盘都是家喻户晓的了，智能家居产品也更多地使用上了蓝牙技术，还有蓝牙防丢器等新兴产品……面对蓝牙的技术革新，BTL也做好了充足的准备，为广大厂商提供RF认证服务。</p><p><br/></p><p><span style="font-size: 18px;"><strong><span style="color: rgb(0, 176, 240);">※ 蓝牙版本时间线&nbsp;&nbsp;<strong style="white-space: normal;"><span style="color: rgb(0, 176, 240);">--------------------------------------------&gt;&gt;&gt;</span></strong></span></strong></span></p><p><img src="/upload_files/2022-02/1644371307136324.jpg" title="1644371307136324.jpg" alt="1.jpg"/></p><p>从蓝牙最近几年的更新可以看出，经典蓝牙已趋于稳定，而低功耗蓝牙技术在解决音频和数据传输的同时，也在向室内定位、方向查找和长距离等更多维度发展，比如BLE 500 kbps (Coded PHY S=2)和125 kbps (Coded PHY S=8)，最多能使蓝牙设备使用范围扩大4倍。 </p><p><br/></p><p><span style="font-size: 18px;"><strong style="white-space: normal;"><span style="color: rgb(0, 176, 240);">※&nbsp;</span></strong><span style="color: rgb(0, 176, 240);"><strong>蓝牙RF测试<strong style="white-space: normal;"><span style="color: rgb(0, 176, 240);"><strong style="white-space: normal;"><span style="color: rgb(0, 176, 240);">&nbsp;&nbsp;<strong>--------------------------------------------&gt;&gt;&gt;</strong></span></strong></span></strong></strong></span></span></p><p><span style="color: rgb(0, 176, 240);"></span></p><p><strong>从RF强制性认证角度，针对目前最新最全的蓝牙技术，BTL的测试策略如下：</strong></p><p><img src="/upload_files/2022-02/1644371343133988.jpg" title="1644371343133988.jpg" alt="简表1.jpg"/></p><p><br/></p><p><span style="font-size: 18px;"><strong><span style="color: rgb(0, 176, 240);"><strong style="white-space: normal;"><span style="color: rgb(0, 176, 240);">※&nbsp;</span></strong>蓝牙BQB测试<strong style="white-space: normal;"><span style="color: rgb(0, 176, 240);">&nbsp;&nbsp;<strong>--------------------------------------------&gt;&gt;&gt;</strong></span></strong></span></strong></span></p><p><strong>从BQB认证角度，针对目前最新最全的蓝牙技术，BTL的测试策略如下：</strong></p><p><img src="/upload_files/2022-02/1644371421120226.jpg" title="1644371421120226.jpg" alt="简表2.jpg"/></p><p><br/></p><hr/><p><strong><span style="color: rgb(0, 176, 240);">近年来，智能手机高速发展，基本上人手一部或多部，而蓝牙作为无线领域重要的成员之一，是智能手机必不可少的功能，针对这一功能，各大厂商纷纷推出了自家的蓝牙产品，如真无线 (TWS) 蓝牙耳机、智能手表/手环、蓝牙防丢器等等。其中属TWS耳机的市场最好，因目前大部分智能手机都取消了3.5 mm有线耳机接口，使得无线耳机市场需求不断增加。而针对TWS耳机，因其左右耳机皆有独立的蓝牙功能，比较多厂商咨询是否可以申请一个ID和证书，针对这个问题，以下是BTL的专业解答：</span></strong></p><p><br/></p><p>● CE认证，只要是共同贩卖的，都是可以申请一张证书的；</p><p><br/></p><p>●&nbsp;FCC/ISED/JRL认证，如果左右耳机PCB Layout / 元器件等一模一样或是镜像设计，一般是可以申请一个ID和证书的；</p><p><br/></p><p>●&nbsp;FCC/ISED/JRL认证，如果左右耳机PCB Layout / 元器件等非一模一样且非镜像设计，有较大差异的，一般需要左右耳机独立申请ID和证书；</p><p><br/></p><p>●&nbsp;FCC/ISED认证，如果左右耳机PCB Layout / 元器件等非一模一样且非镜像设计，仅细微差异的，需要提交具体差异给到发证机构进行评估界定是否可以申请一个ID和证书；</p><p><br/></p><p>●&nbsp;BQB认证，如果左右耳机的蓝牙芯片引用协议部分的QDID是一致的，则可以使用一个DID和证书，如果QDID不一样，则不可以使用一个DID和证书。</p><p><br/></p><p><strong>如果还想了解更多关于蓝牙认证方面的内容，随时欢迎广大厂商联系BTL团队，BTL会与您分享最专业最全面的资讯。</strong></p></div>
